机械操作件类 产品 >> Spherical plain bearing rod end with internal thread type SFC

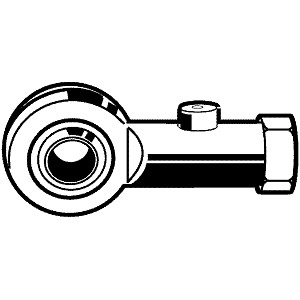

Spherical plain bearing rod end with internal thread type SFC |
|
 |
|
ISO 12240-4 DIN 648B |
 |
|
|
技术参数 |

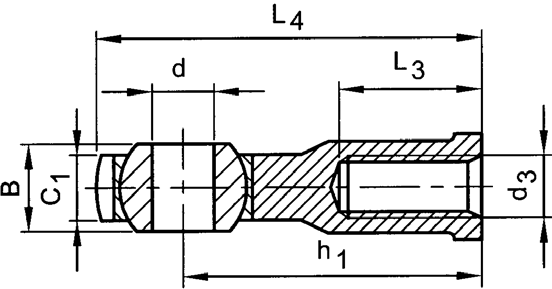

Type | SFC5 | SFC6 | SFC8 | SFC10 | SFC12 | SFC14 | SFC16 | d (H7) | 5 | 6 | 8 | 10 | 12 | 14 | 16 | B | 8 | 9 | 12 | 14 | 16 | 19 | 21 | C1 (max.) | 7,5 | 7,5 | 9,5 | 11,5 | 12,5 | 14,5 | 15,5 | d2 (max.) | 18 | 20 | 24 | 28 | 32 | 36 | 42 | d3 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | d4 (max.) | 9 | 10 | 12,5 | 15 | 17,5 | 20 | 22 | d5 (max.) | 12 | 13 | 16 | 19 | 22 | 25 | 27 | h1 | 27 | 30 | 36 | 43 | 50 | 57 | 64 | L3 (min.) | 8 | 9 | 12 | 15 | 18 | 21 | 24 | L4 (max.) | 37 | 41 | 49 | 58 | 67 | 76 | 86 | L5 (max.) | 4 | 5 | 5 | 6,5 | 6,5 | 8 | 8 | s | 9 | 11 | 14 | 17 | 19 | 22 | 22 | α o ≈ | 13 | 13 | 13 | 13 | 13 | 15 | 15 | Static load (Co) in N | 6000 | 7000 | 12000 | 14500 | 17000 | 24000 | 28500 |
|
产品种类 |
Thread | Material |
| Packaging | Code | Page | M | St | right | Standard | 57605 | 12-38 | M | St | left hand | Standard | 57655 | 12-38 |
|
