机械操作件类 产品 >> Spring plunger with pin and hexagon socket

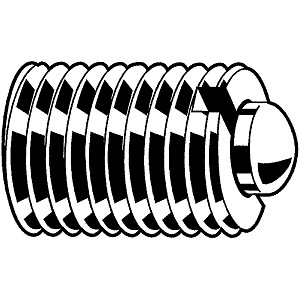

Spring plunger with pin and hexagon socket |
|
|
|
技术参数 |

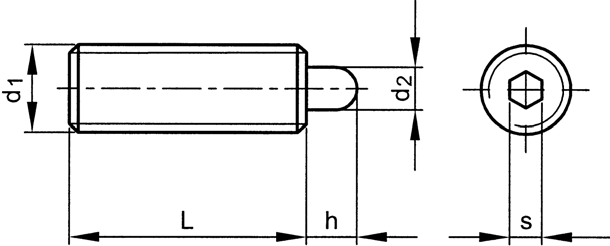

d1 M3 | P 0,5 | d2 1 | h 1,5 | s 0,7 | Spring pressure in N 0,5-3,5 | M4 | 0,7 | 1,5 | 1,5 | 1,3 | 5-16 | M5 | 0,8 | 2,4 | 2,3 | 1,5 | 6-20 | M6 | 1 | 2,7 | 2,5 | 2 | 7-20 | M8 | 1,25 | 3,5 | 3 | 2,5 | 9-35 | M10 | 1,5 | 4 | 3 | 3 | 9-35 | M12 | 1,75 | 6 | 4 | 4 | 10-55 | M16 | 2 | 7,5 | 5 | 5 | 45-100 | M20 | 2,5 | 10 | 7 | 6 | 60-145 |
|
产品种类 |
Thread | Material | Packaging | Code | Page | M | Free-cutting steel | Standard | 56977 | 12-45 | M | St.St. | Standard | 56978 | 12-45 |
|
