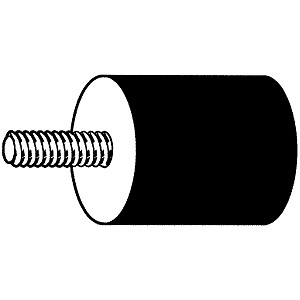

Cylindrical mounting type B

技术参数

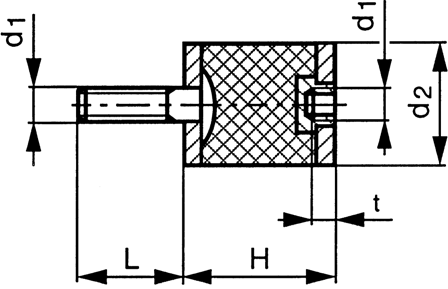

Type

B10/10

d1

M4

d2

10

H

10

L

10

t

4

Max. pull-out force in N

56

Max. allowable shear load in N

10

B15/15

M4

15

15

10

4

115

50

B20/15

M6

20

15

18

6

160

105

B20/20

M6

20

20

18

6

160

90

B20/25

M6

20

25

18

6

150

90

B25/15

M6

25

15

18

6

290

160

B25/20

M6

25

20

18

6

280

145

B25/25

M6

25

25

18

6

260

135

B25/30

M6

25

30

18

6

250

135

B30/15

M8

30

15

20

8

676

208

B30/20

M8

30

20

20

8

380

210

B30/30

M8

30

30

20

8

355

190

B30/40

M8

30

40

23

8

600

340

B40/30

M8

40

30

23

8

600

340

B40/40

M8

40

40

23

8

600

330

B50/20

M10

50

20

28

10

1300

455

B50/30

M10

50

30

28

10

1200

500

B50/40

M10

50

40

28

10

1100

315

B50/45

M10

50

45

28

10

1050

510

B50/50

M10

50

50

28

10

1050

505

B70/45

M10

70

45

28

10

2200

995

B75/40

M12

75

40

37

12

2900

1215

B75/50

M12

75

50

37

12

2600

1185

B75/55

M12

75

55

37

12

2400

1170

B100/40

M16

100

40

41

16

6500

2310

B100/55

M16

100

55

41

16

5100

2180

B100/60

M16

100

60

41

16

5000

2125

产品种类

Thread

Material

Surface treatment

Packaging

Code

M

St

Zipl

Standard

57771
