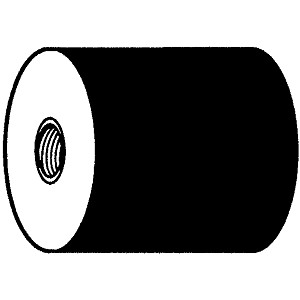

Cylindrical mounting type C

技术参数

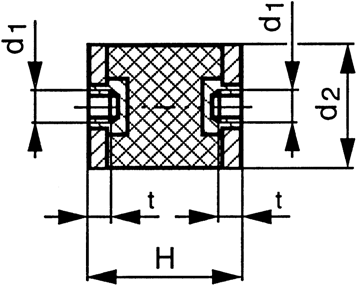

Type

C10/10

d1

M4

d2

10

H

10

t

5

Max. pull-out force in N

96

Max. allowable shear load in N

12

C15/15

M4

15

15

5

120

40

C20/20

M6

20

20

6

170

50

C20/25

M6

20

25

6

150

40

C25/20

M6

25

20

6

280

90

C25/25

M6

25

25

6

260

80

C25/30

M6

25

30

6

250

80

C30/20

M8

30

20

8

380

120

C30/30

M8

30

30

8

355

110

C30/40

M8

30

40

8

429

208

C40/30

M8

40

30

8

700

250

C40/40

M8

40

40

8

650

250

C50/30

M10

50

30

10

1200

400

C50/40

M10

50

40

10

1100

400

C50/45

M10

50

45

10

1050

400

C50/50

M10

50

50

10

1050

400

C70/45

M12

70

45

10

2200

750

C75/40

M12

75

40

12

2900

900

C75/50

M12

75

50

12

2600

900

C100/40

M16

100

40

16

6500

1500

C100/55

M16

100

55

16

5100

1500

C100/60

M16

100

60

16

5000

1500

产品种类

Thread

Material

Surface treatment

Packaging

Code

M

St

Zipl

Standard

57780
