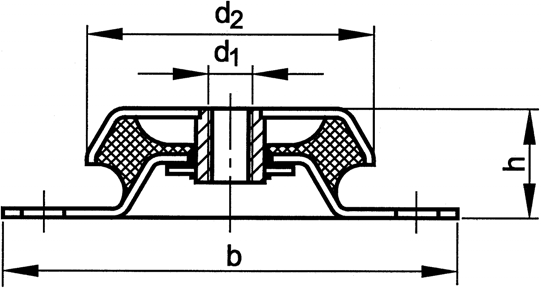

Type | RAEM 40/M10 | RAEM 60/M12 | RAEM 125/M10 | RAEM 125/M12 | RAEM 350/M12 | RAEM 350/M16 | RAEM 800/M16 | d1 | M10 | M12 | M10 | M12 | M12 | M16 | M16 | b | 110 | 120 | 135 | 135 | 175 | 175 | 216 | h | 35,5 | 35,5 | 35,5 | 35,5 | 42 | 42 | 54 | d2 Assembly data | 64 | 63 | 84 | 84 | 110 | 110 | 155 | a | 88 | 100 | 110 | 110 | 140-148 | 140-148 | 182 | d3 | 9 | 11 | 11 | 11 | 14 | 14 | 14 | Max. pull-out force in N | 600 | 1200 | 1800 | 1800 | 4000 | 4000 | 8000 |
|
