铆钉/销类产品 >> Spring cotter of a bolt, single
Spring cotter of a bolt, single |
|
 |
|
DIN ≈11024 |
 |
|
|
技术参数 |

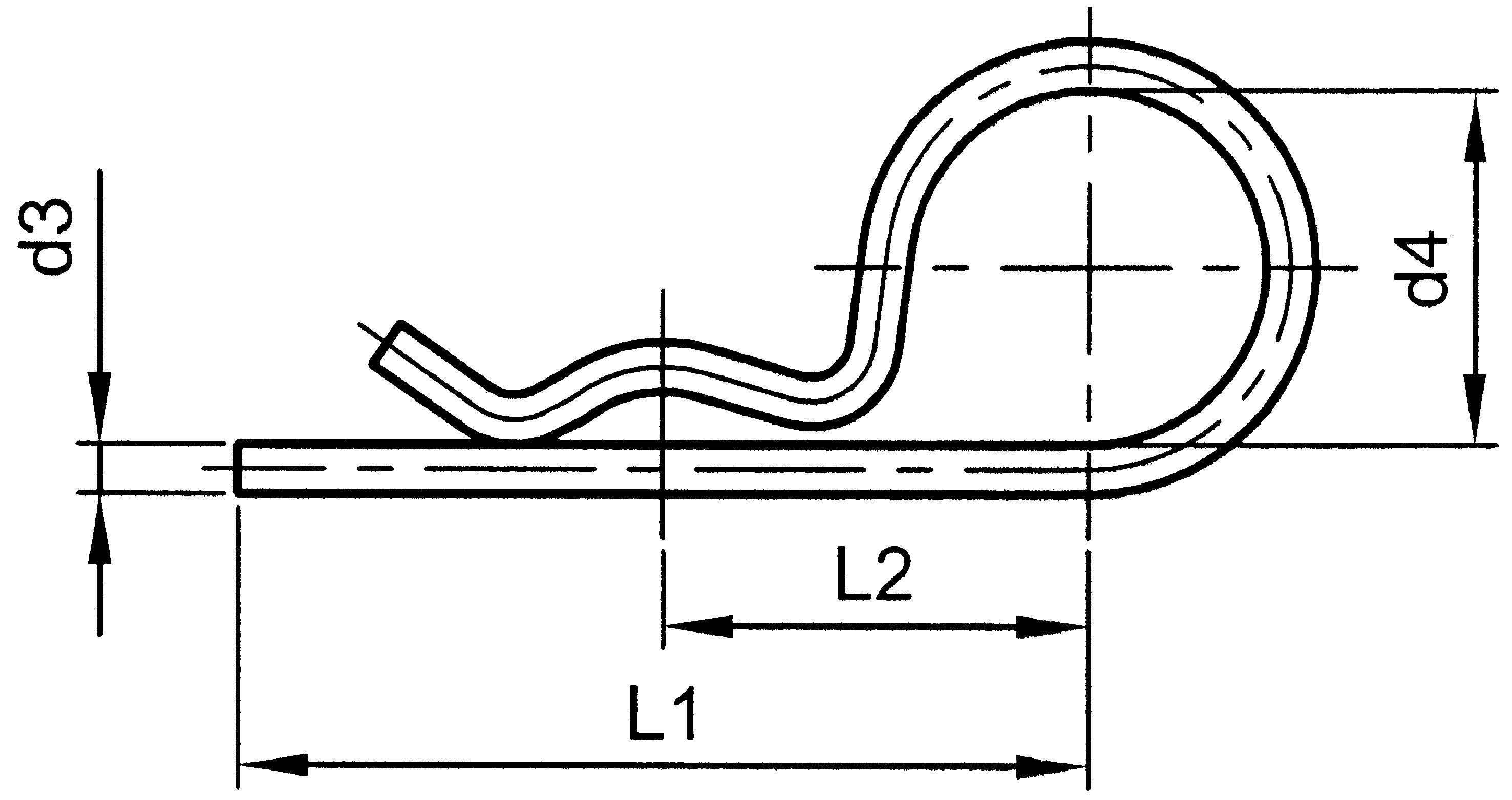

d1 (nom.) = hole ø | 2,5 | 3,5 | 4,5 | 6 | 7 | 8 | 9 | d3 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | L1 | 50 | 60 | 60 | 85 | 105 | 105 | 110 | L2 | 25 | 28 | 30 | 40 | 50 | 50 | 55 | d4 | 10 | 18 | 20 | 21 | 30 | 30 | 28 | Assembly data |
|
|
|
|
|
|
| For shaft ø d2 > | 9 | 10 | 10 | 20 | 28 | 28 | 30 | For shaft ø d2 ≤ | 14 | 16 | 20 | 28 | 40 | 45 | 45 |
|
产品种类 |
Material | Surface treatment | Packaging | Code | Spring steel | Zipl yell.p. | Standard | 39610 |
|
