Type
| D
| L
| Drill ø

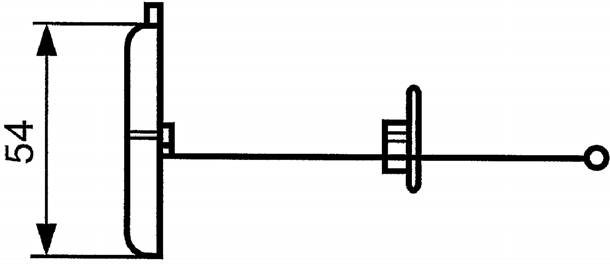

| Material thickness (min.) | Cavity depth (min.) | Wood screws ø | Pull-out force in kN | K 54 | - | 125 | 10 | 65 | 58 | 4 | 0,8 | KD 3 | M3x90 | 95 | 12 | 65 | 27 | - | 1 | KD 4 | M4x100 | 105 | 14 | 69 | 34 | - | 2 | KD 5 | M5x100 | 100 | 16 | 63 | 70 | - | 3 | KD 6 | M6x100 | 100 | 16 | 63 | 70 | - | 3,5 | KD 8 | M8x100 | 100 | 20 | 55 | 75 | - | 13,5 | KDH 3 | M3x80 | 105 | 12 | 51 | 27 | - | 0,1 | KDH 4 | M4x80 | 95 | 14 | 35 | 34 | - | 0,4 | KDH 5 | M5x90 | 130 | 16 | 60 | 70 | - | 0,6 | KDH 8 | M8x100 | 130 | 20 | 55 | 75 | - | 1,5 |
|
