膨胀螺栓类产品 >> Hammerfix with isolating washer

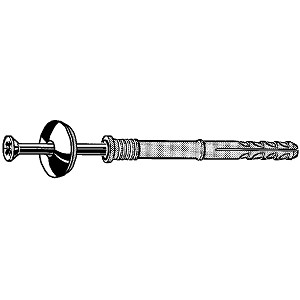

Hammerfix with isolating washer |
|
|
|
技术参数 |

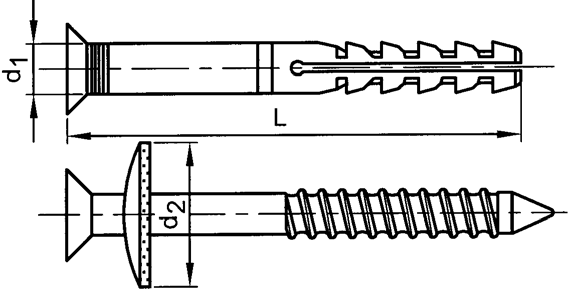

Type | N6x40 D | N6x60 D | d1 | 6 | 6 | L | 40 | 60 | d2 Nail dimension | 19 4x48 | 19 4x64 | Drill ø | 6 | 6 | Drill depth (min.) | 55 | 75 | Grip range (max.) | 10 | 30 | Pull-out force in kN |
|
| Concrete B25 | 1,4 | 1,4 | Brick Mz12 | 1,2 | 1,2 | Pumice grit V4 | 0,8 | 0,8 | Sandlime brick KS12 | 1,2 | 1,2 | Cellular concrete G2 | 0,25 | 0,25 | Cellular concrete G4 | 0,65 | 0,65 |
|
产品种类 |
Material | Colour | Brand | Packaging | Code | Plastic Nylon | Grey | FISCHER | Standard | 63617 |
|
