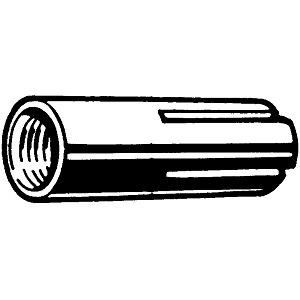

Female threaded hammer-in anchor SA |
|
|
|
技术参数 |

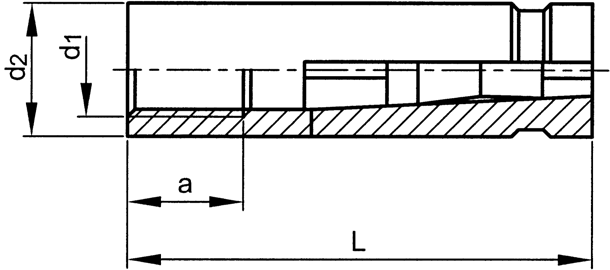

d1 | M6 | M8 | M10 | M12 | M16 | L | 30 | 30 | 40 | 50 | 65 | d2 | 8 | 10 | 12 | 15 | 20 | a | 13 | 13 | 15 | 18 | 23 | Drill ø | 8 | 10 | 12 | 15 | 20 | Drill depth (min.) | 32 | 32 | 42 | 53 | 70 | Tightening torque in Nm | 4 | 8 | 15 | 35 | 60 | Allowable load in kN |
|
|
|
|
| Concrete ≥ B25 | 1 | 1,8 | 3,6 | 5,7 | 7,4 |
|
产品种类 |
Thread | Material | Brand | Packaging | Code | M | St.St. A4 | SPIT | Standard | 70875 |
|
