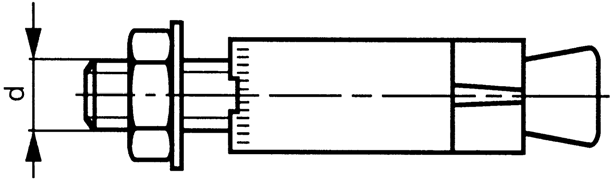

Type | FZA 12x40 M8/15 | FZA 12x50 M8/15 | FZA 14x40 M10/25 | FZA 14x60 M10/25 | FZA 18x80 M12/25 | d | M8 | M8 | M10 | M10 | M12 | Drill ø (type FZUB) | 12 | 12 | 14 | 14 | 18 | Drill depth | 40 | 50 | 40 | 60 | 80 | Grip range (max.) | 15 | 15 | 25 | 25 | 25 | Allowable load in kN |
|
|
|
|
| Concrete ≥ B25 | 1,94 | 1,94 | 2,84 | 4,24 | 7,57 |
|
