膨胀螺栓类产品 >> Anchor threaded stud Maxima

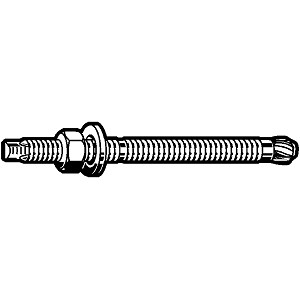

Anchor threaded stud Maxima |
|
|
|
技术参数 |
Type | M8 | M10 | M12 | M16 | M20 | M24 | M30 | D | M8 | M10 | M12 | M16 | M20 | M24 | M30 | L | 105 | 128 | 155 | 183 | 260 | 300 | 380 | Nominal diameter of drill bit (do) | 10 | 12 | 14 | 18 | 25 | 28 | 35 | Tightening torque in Nm | 10 | 20 | 30 | 60 | 120 | 200 | 400 | Diameter of clearance hole in the fixture (df) | 9 | 12 | 14 | 18 | 22 | 26 | 33 | Minimal thickness of concete member (hmin.) | 110 | 120 | 150 | 160 | 220 | 300 | 350 | Depth of drilled hole to deepest point (homin.-homax.) | 80 | 90 | 110 | 125 | 170 | 210 | 280 | Thickness of the fixture (tfix.max.-tfix.min.) | 15 | 25 | 30 | 40 | 68 | 64 | 70 | Effective anchorage depth (hef.min.-hef.max.) | 80 | 90 | 110 | 125 | 170 | 210 | 280 | Spacing (Scr, N), characteristic | 160 | 180 | 220 | 250 | 340 | 420 | 560 | Edge distance (Ccr, N), characteristic | 80 | 90 | 110 | 125 | 170 | 210 | 280 | Minimal spacing (Smin.) | 40 | 45 | 55 | 65 | 85 | 105 | 140 | Minimal edge distance (Cmin.) | 40 | 45 | 55 | 65 | 85 | 105 | 140 | Allowable load in kN | 5,3 | 8,3 | 13,2 | 19,8 | 36,9 | 38 | 46,3 |
|
产品种类 |
Thread | Material | Surface treatment | Packaging | Code | Page | M | St | Zipl | Standard | 70636 | 8-61 | M | St.St. A4 |
| Standard | 70646 | 8-61 |
|
