Insert with anchor bar |
|
|
|
技术参数 |

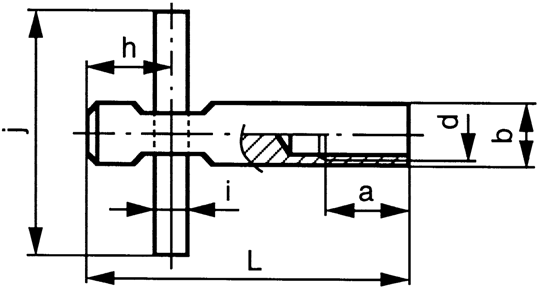

d | M12 | M12 | M16 | M16 | M20 | a | 24 | 24 | 30 | 32 | 35 | b | 16 | 16 | 21 | 21 | 26 | h | 15 | 18,5 | 21 | 29 | 24 | i | 9 | 9 | 10 | 10 | 12 | j | 50 | 50 | 80 | 80 | 80 | Pull-out force in kN |
|
|
|
|
| Concrete | 24 | 28 | 36 | 52 | 56 |
|
产品种类 |
Thread | Material | Surface treatment |
| Packaging | Code | Page | M | St | Zipl |
| Standard | 18240 | 8-78 | M | St.St. |
| 1074 A | Standard | 18390 | 8-78 |
|
