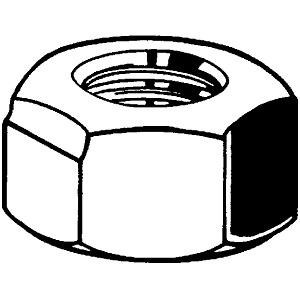

公制细牙金属六角防松螺母 |
|
 |
|
ISO 10513 DIN 980V(1987) NEN 2452 NF E25-410 |
 |
|
|
技术参数 |

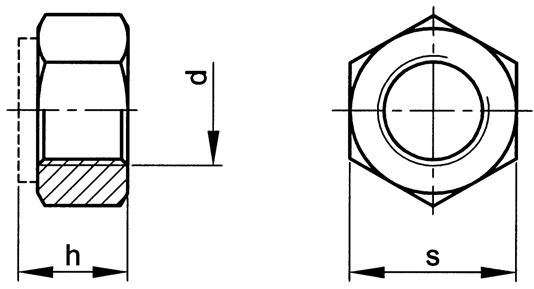

d | h (max.) | s | M8 | 8 | 13 | M10 | 10 | 17 | M12 | 12 | 19 | M14 | 14 | 22 | M16 | 16 | 24 | M18 | 18 | 27 | M20 | 20 | 30 | M24 | 24 | 36 |
|
产品种类 |
Thread | Driving features | Material | Class Surface treatment | Packaging | Code | MF | hexagon | St | |8| Zipl | Standard | 12912 |
|
