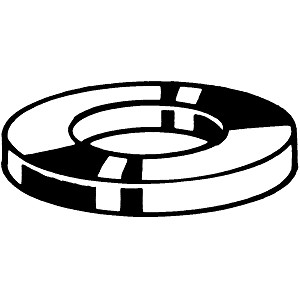

Plain washer for clevis pins

ISO (8738)
DIN 1440

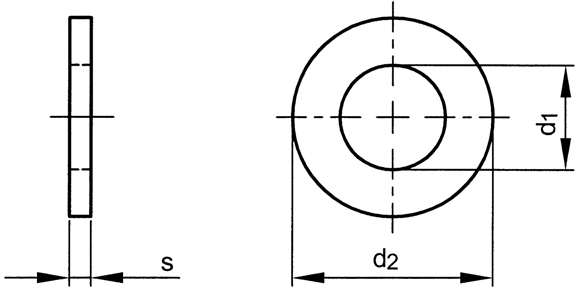

Technical Parameter

For pin ø

3

d1 (H11)

3

d2

6

s

0,8

4

4

8

0,8

5

5

10

0,8 (1)

6

6

12

1,6

7

7

14

1,6

8

8

16 (15)

2

10

10

20 (18)

2,5

12

12

25 (20)

3

13

13

25

3

14

14

28 (22)

3

16

16

28 (24)

3

18

18

30

4

20

20

32

4

22

22

34

4

23

23

36

4

24

24

38

4

25

25

40

4

26

26

40

5

27

27

40

5

28

28

42

5

30

30

45

5

32

32

50

5

40

40

58

6

Product Category

Material

Surface treatment

Packaging

Code

Page

St

Zipl

Standard

38760

7-24

St.St. A2

Standard

51534

7-24
